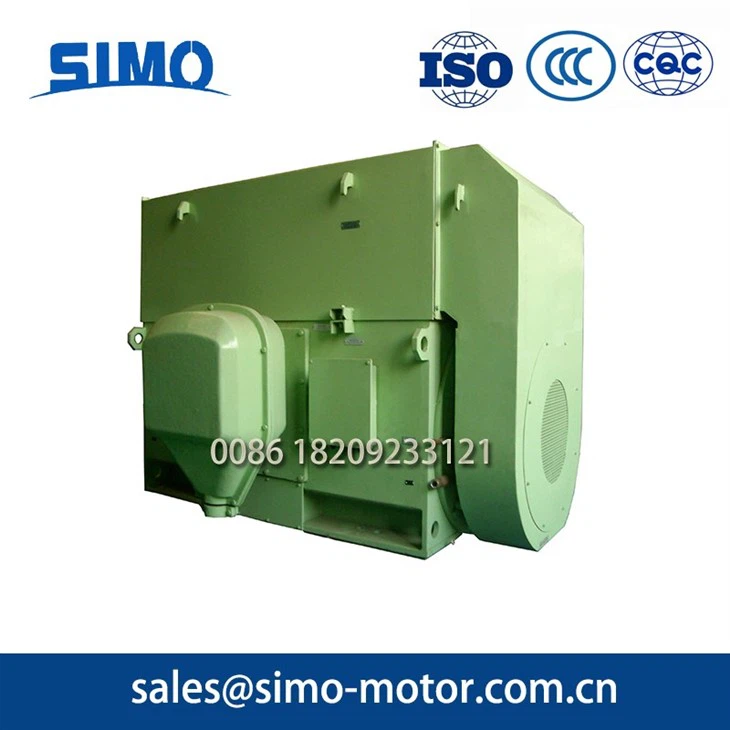

Ykk -500 Cov Lus Taw Qhia luv luv

Cov lus ntawm cov motors yog 10KV HIG VERTAGE TSAVNeckirrel-tawb peb-theem asynchronous tsav nrog ib qho siab ntawm 500m, featuring ib tug qauv kaw thiab ua raws li tus qauv jb / {}}

Yooj yim

Ncej Loj Ntau: 500mm

Cov Ntsuas Hluav Taws Xob: 10KV (Customizable)

Nyob Qhov Coob: 50Hz / 60Hz

Ceev Ceev: 3000rpm ({{2- ncej ({{}}}}}}}}} {ncej)

Lub Hwj Chim Ntau Yam: 355KW ~ 2500kw

Hom Mounting: IMB3 (Kab rov tav, taw-mounted)

Kev Tiv Thaiv Chav Kawm: IP54 / IP55 (Yeem)

Cua txias txoj kev: Ic611 (huab cua-rau-cua txias)

Chav Kawm Rwb Thaiv Tsev: Chav Kawm F

Kev ua haujlwm ib puag ncig yuav tsum muaj :

Ambient Kub: {{{{}}℃~ +40 degree

Kev vaum: Lub hlis nruab nrab cov av noo tsawg dua lossis sib npaug ntawm 90% (txhua hli nruab nrab tsawg dua li kub tsawg dua lossis sib npaug rau 25 degree)

Ykk -500}} Cov Qauv Sau Npe

Ykk 5001-2 ykk 5002-2} ykk {}}}}} 5005-2

Ykk 5001-4 ykk 5002-4} ykk {}}}}} 5005-4

Ykk 5001-6 ykk 5002-6} ykk {}}}}} 5005-6

Ykk 500-8 c ykk 500-8 b ykk {}}}} ykk 5002-8

Ykk 5003-8 ykk 5004-8} ykk {}}}}} 5001-10

Ykk 5002-10 ykk 5003-10} ykk {}}}}} 5006-10

Ykk 5004-12 ykk 5005-12} ykk 5006-12

Ykk 10Kv High Voltage Tsav 500 Ncej Loj Lub Cev Muaj Zog Cov Ntawv Ntawv

Ntaus	Rated zog (kw)	Rated tam sim no (a)	Kev ceev (R / min)	EFFI ciency (%)	Lub zog muaj (cos)	Max torque / Rated torque	Xauv Torque / Rated torque	Xauv Tam Sim No / Rated tam sim no	J (lub cev muaj zog) (KGB M²)	J (LOAD) (KGB M²)	Huab hwm coj (kg)	Lub sij hawm lub sijhawm (h)
Ykk 5001-2	500	35.6	2985	93.3	0.87	1.8	0.55	7	11.1	29	5125	500
Ykk 5002-2	560	39.7	2985	93.5	0.87	1.8	0.55	7	12	31	5205	500
Ykk 5003-2	630	44.7	2985	93.6	0.87	1.8	0.55	7	12.6	34	5295	500
Ykk 5004-2	710	50.3	2985	93.7	0.87	1.8	0.55	7	13.8	38	5445	500
Ykk 5005-2	800	56	2985	93.8	0.88	1.8	0.55	7	15.4	41	5655	500
Ykk 5001-4	630	44.8	1490	93.3	0.87	1.8	0.7	7	30.5	82	4480	1000
Ykk 5002-4	710	50.3	1490	93.6	0.87	1.8	0.7	7	32	85	4670	1000
Ykk 5003-4	800	55.9	1490	93.9	0.88	1.8	0.7	7	33.8	92	4720	1000
Ykk 5004-4	900	62.7	1490	94.1	0.88	1.8	0.7	7	35	100	5054	1000
Ykk 5005-4	1000	69.6	1490	94.3	0.88	1.8	0.7	7	38	115	5120	1000
Ykk 5001-6	450	33.3	995	93	0.84	1.8	0.7	6	35.5	240	4350	2000
Ykk 5002-6	500	36.9	995	93.2	0.84	1.8	0.7	6	37	252	4460	2000
Ykk 5003-6	560	41.2	995	93.5	0.84	1.8	0.7	6	39	285	4590	2000
Ykk 5004-6	630	46.1	995	93.9	0.84	1.8	0.7	6	40	317	4690	2000
Ykk 5005-6	710	51.9	995	94	0.84	1.8	0.7	6	44	341	4830	2000
Ykk 500-8 c	200	17.1	740	91	0.74	1.8	0.7	6	36	670	3930	2000
Ykk 500-8 b	220	18.5	740	91.4	0.75	1.8	0.7	6	38	690	4020	2000
Ykk 500-8 a	250	21	740	91.8	0.75	1.8	0.7	6	40	710	4100	2000
Ykk 5001-8	280	22.8	740	92.2	0.77	1.8	0.7	6	42	730	4220	2000
Ykk 5002-8	315	25.6	740	92.3	0.77	1.8	0.7	6	45.5	765	4310	2000
Ykk 5003-8	355	28.4	740	92.6	0.78	1.8	0.7	6	48	795	4450	2000
Ykk 5004-8	400	31.9	740	92.8	0.78	1.8	0.7	6	50	835	4550	2000
Ykk 5005-8	450	35.3	740	93.1	0.79	1.8	0.7	6	53	930	4610	2000
Ykk 5006-8	500	39.1	740	93.4	0.79	1.8	0.7	6	54.5	1010	4720	2000
Ykk 5001-10	200	17.6	595	90.9	0.73	1.8	0.7	5.5	45.5	790	4180	3000
Ykk 5002-10	220	19	595	91.4	0.73	1.8	0.7	5.5	49	877	4250	3000
Ykk 5003-10	250	21.3	595	91.7	0.74	1.8	0.7	5.5	50	910	4480	3000
Ykk 5004-10	280	23.8	595	91.9	0.74	1.8	0.7	5.5	53	937	4550	3000
Ykk 5005-10	315	26.3	595	92.3	0.75	1.8	0.7	5.5	57	1015	4670	3000
Ykk 5006-10	355	29.5	595	92.5	0.75	1.8	0.7	5.5	59	1150	4850	3000
Ykk 5004-12	200	18.4	495	91.1	0.69	1.8	0.7	6	56	1150	4200	3000
Ykk 5005-12	220	20.2	495	91.3	0.69	1.8	0.7	6	57	1350	4400	3000
Ykk 5006-12	250	22.9	495	91.5	0.71	1.8	0.7	6	59	1722	4700	3000

Khoom nta

Efficiency High thiab Zog Txuag: Optimized tsim, ua raws li cov qauv tsav loj

Muaj suab nrov qis & tsis tshua muaj kev co: cov qauv ruaj khov, kev ua haujlwm du

Proture Kev ntseeg siab: Cov rwb rwb thaiv tsev f rwb thaiv tsev, nqus tau siab impregnation (vpi) thiab kub tiv taus

Kev Tu Tau yooj yim: Cov qauv nrog, tshem tau cov khoom tiv thaiv kom yooj yim rau kev kuaj xyuas yooj yim

✅ Muaj Zog Haum tau: Haum rau ntau yam khoom lag luam

Qauv nta

Ncej: Welded Hlau Box-Hom qauv, muaj siab siab, lub teeb yuag

Stator: plam-nyob sab nraud xovxwm-haum qauv, chav kawm f tsawg dwb thaiv tsev, VPI txheej txheem

Bearings: Dov bearings lossis zawv zawg bearings (xaiv raws li lub zog thiab nrawm)

Kev Tiv Thaiv Kev Tiv Thaiv: IP54 / IP55, qee cov qauv tuaj yeem hloov kho dua rau cov qib kev tiv thaiv ntau dua

Daim Ntawv Thov

Kev Lag Luam General: Tus Cua, Compressors, Twj, Crossing Khoom siv

Kev lag luam fais fab: Fais fab nroj tsuag ib qho kev tsav tsheb

Tsuas / metallurgy: crushers, pob zeb, conveying tshuab

Lwm tus: Tshuaj lom neeg, cov ntaub ntawv tsim tsev, machining, thiab lwm yam.

Qauv piav qhia (piv txwv: ykk 5001-4)

Ykk: Muab cov nas tsho-tawb-tawb rotor asynchronous tsav nrog cua-rau-cua txias

5001 : Chaw qhov siab 500mm, tsis muaj .1} tub ntev

4 : {4- tus ncej Tsav (1500rpm)

Ykk 10Kv Heev Voltage Tsav Catalg Qhov Loj

product-1000-732

Cov lus qhia xaj

⚠ Cov Lus Tseem Ceeb:

Belt drive is prohibited for 2-pole and 4-pole motors(Tham rau cov kev pab tshwj xeeb)

2-} daim motors tsis ua neej rau kev sib hloov(Qhia meej tias kev sib hloov countermlockwise yog yuav tsum tau)

Tshwj xeeb Tshwj Xeeb Kev Xav Tau Yuav Tsum Tau Sib Txawv Los Ua Ntej

Lub ntsiab

Xi'an Simo Ykk Series High-Voltage Motorsyog tsim nyog rau cov dej num muaj zog, ua kom muaj kev vam meej, thiab yooj yim}

Simo Ykk 10Kv Loj Muaj Motors Tsav, Xaiv Simo, xaiv qhov zoo!
